Petroleum Jelly Filling Machine

Petroleum Jelly Filling Machine surely help to speed up production in cosmetic industry. It fills petrolatum, pain balm, lip balm and other viscous products which need hot filling. Jelly is contained in small plastic containers in solid form. Equipment designed to function seamlessly for superlative productivity with necessary safety measures. Filling mechanism is volumetric type to fill petroleum jelly and related wax-based products. Petroleum Jelly is having wax content hence it has to melt in order to do filling operations. Once jelly get filled then after a while it became in solid state. There is an exponentially increasing demand for ampoules across the globe. By leveraging these machines, one can meet petroleum jelly filling demands in a very short span of time without compromising on safety and international standards. Our machine range consist single head as well as multiple heads filling machines for different user requirements.

PETROLEUM JELLY FILLING MACHINE VIDEO

Features of Petroleum Jelly Filling Machine

• Compact model.
• Suitable for filling petroleum jelly, petrolatum, lip balm, lip gel, pain balm and other hot viscous products.
• Product Hopper, Filling Block, Filling Syringe and Filling Needles made from Stainless Steel 316 materials.
• “Delrin”/” Nylo cast”/PVC make conveyor belt for smooth operation.
• All MS Angle painted and covered with Stainless Steel 304 (where possible) to meet industry requirements.
• Machine covered with Stainless Steel 304 coverings.
• Suitable for filling from 10 grams to 50 grams.
• Higher filling accuracy.
• Correct & uniform filling.
• “No Bottle – No Filling” device.
• Relay electrical control system with operating panel with Start, Stop, Inch button and Speed port.
• S.S. filling syringe with direct connection to storage tank, hence no wastage of material.
• Variable Motor speed adjustment.
• Production counter available on control panel to indicate number of bottles filled.
• Lower maintenance requires.

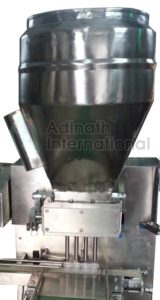

    Complete Machine                                     Filling Station

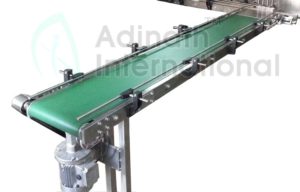

Cooling Conveyor

Petroleum Jelly Filling Machine Working Principle

The machine built simple and sturdy with a very compact design to reduce the working area and having very user-friendly operations. The machine made of Stainless Steel on surface area and all contact parts of media is made from high quality Stainless Steel 316 materials. The filling mechanism is mechanically driven with a positive suction pump assembly. Syringe can be provided as per the fill volume of different variants with machine. “No Bottle – No Filling’ process sensors connected to a pneumatic cylinder which enables filling only when the tube is sensed at the filling area. Machine is equipped with pneumatic/mechanical cut off device for accurate filling.

Technical Specification of Petroleum Jelly Filling Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
